Apache ZooKeeper

ZooKeeper is an open source project to provide a configuration and synchronization service for cluster computing. With ZooKeeper, Hadoop YARN ResourceManager (RM) is supported with high availability. HBase, Storm and other software use ZooKeeper for coordinating the cluster.

Overview

ZooKeeper is a distributed, open-source coordination service for distributed applications. It exposes a simple set of primitives that distributed applications can build upon to implement higher level services for synchronization, configuration maintenance, and groups and naming. It is designed to be easy to program to and uses a data model styled after the familiar directory tree structure of file systems. It runs in Java and has bindings for both Java and C. (as quoted in ZooKeeper overview: http://zookeeper.apache.org/doc/trunk/zookeeperOver.html)

../../_images/zkservice.jpg

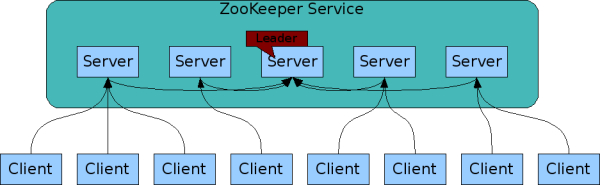

Figure 1. ZooKeeper Service

Key points

  • Data replication
  • Ensemble is a group of ZooKeeper servers to use replication to achieve high availability and performance
  • Odd number of servers due to simple majority voting
  • Single (Standalone) installation is not for a production model
  • Leader election
  • Configuration, Name Service, Group Membership
  • Wait-free for fault tolerance, performance (compared to Chubby)
  • Started by Yahoo

Chubby is a locking service with strong synchronization guarantees.

Zab

Zab is a leader-based atomic broadcast protocol used in ZooKeeper to guarantee that update operations satisfy linearizability.

Implementation

ZooKeeper synchronizes every change to the tree of znodes across the ZooKeeper servers, ensemble. This way prevents inconsistency of the data by sharing the information. If one of the servers fails, the rest of them will replicate state and trees.

  • Leader election
  • Atomic broadcast

Znodes

Znodes is a hierarchical name space of data registers and each znode has a path with a delimeter “/” like a directory structure. There are parent and child znodes.

Apache Qurator

Apache Qurator is a set of Java libraries for automatic ZooKeeper connection management with retries and easy development of new ZooKeeper recipes.

Github: https://github.com/apache/curator

ZooKeeper Installation

Required Packages

ZooKeeper runs in Java, release 1.6 or greater (JDK 6 or greater).

Java JDK

sudo apt-get update
sudo apt-get install openjdk-7-jdk

You can find other installation packages here: http://java.sun.com/javase/downloads/index.jsp

ZooKeeper Server Package

Download latest here: http://www.apache.org/dyn/closer.cgi/zookeeper/

Download 3.4.6

wget http://supergsego.com/apache/zookeeper/stable/zookeeper-3.4.6.tar.gz
tar xzf zookeeper*.tar.gz
ln -s zookeeper-3.4.6 zookeeper

Configuration zoo.cfg

cp zookeeper/conf/zoo_sample.cfg zookeeper/conf/zoo.cfg
nano zookeeper/conf/zoo.cfg

Confirm the settings and update with:

tickTime=2000
dataDir=/var/lib/zookeeper
clientPort=2181
  • tickTime: the basic time unit in milliseconds used by ZooKeeper. It is used to do heartbeats and the minimum session timeout will be twice the tickTime.
  • dataDir: the location to store the in-memory database snapshots and, unless specified otherwise, the transaction log of updates to the database.
  • clientPort: the port to listen for client connections

If you have multiple severs, zoo.cfg has more values, for example:

server.1=10.0.0.2:2888:3888
server.2=10.0.0.3:2888:3888
server.3=10.0.0.4:2888:3888

It is server.id=host:port:port

Tip

Ensemble setup (multi-server) http://zookeeper.apache.org/doc/trunk/zookeeperAdmin.html#sc_zkMulitServerSetup

myid in var/lib/zookeeper (For multi-server)

The myid file which stays in dataDir contains a machine’s id. If you have 3 servers,the first server has 1 in the myid, and the second one has 2. The id must be unique within the ensemble and should have a value between 1 and 255.

node 1

mkdir -r /var/lib/zookeeper
echo "1" > /var/lib/zookeeper/myid

node 2

mkdir -r /var/lib/zookeeper
echo "2" > /var/lib/zookeeper/myid

Start ZooKeeper Server

Now that you created the configuration file, you can start ZooKeeper:

zookeeper/bin/zkServer.sh start

ZooKeeper Client

zookeeper/bin/zkCli.sh
...
[zk: localhost:2181(CONNECTED) 0]

If you get access to other nodes:

zookeeper/bin/zkCli.sh -server [node ip address]:2181

Citation

Hunt, Patrick, et al. “ZooKeeper: Wait-free Coordination for Internet-scale Systems.” USENIX Annual Technical Conference. Vol. 8. 2010. [pdf]

Reading List

  • Reed, Benjamin, and Flavio P. Junqueira. “A simple totally ordered broadcast protocol.” proceedings of the 2nd Workshop on Large-Scale Distributed Systems and Middleware. ACM, 2008. [pdf]
  • Junqueira, Flavio Paiva, Benjamin C. Reed, and Marco Serafini. “Zab: High-performance broadcast for primary-backup systems.” Dependable Systems & Networks (DSN), 2011 IEEE/IFIP 41st International Conference on. IEEE, 2011. [pdf]
  • Design Paper for Hadoop and Zookeeper [pdf]
  • Chapter 14: ZooKeeper in Hadoop: The Definitive Guide By Tom White

Additional Reading List

  • Kirsch, Jonathan, and Yair Amir. “Paxos for system builders.” Dept. of CS, Johns Hopkins University, Tech. Rep (2008). [pdf]
  • Baker, Jason, et al. “Megastore: Providing Scalable, Highly Available Storage for Interactive Services.” CIDR. Vol. 11. 2011. [pdf]
  • Kadambi, Sudarshan, et al. “Where in the world is my data.” Proceedings International Conference on Very Large Data Bases (VLDB). 2011. [pdf]
  • Burrows, Mike. “The Chubby lock service for loosely-coupled distributed systems.” Proceedings of the 7th symposium on Operating systems design and implementation. USENIX Association, 2006. [html]
  • Taylor, Ronald C. “An overview of the Hadoop/MapReduce/HBase framework and its current applications in bioinformatics.” BMC bioinformatics 11.Suppl 12 (2010): S1. [html]

Acknowledgement

This lesson is adopted from Apache ZooKeeper Documentation: http://zookeeper.apache.org/doc/trunk/zookeeperOver.html
